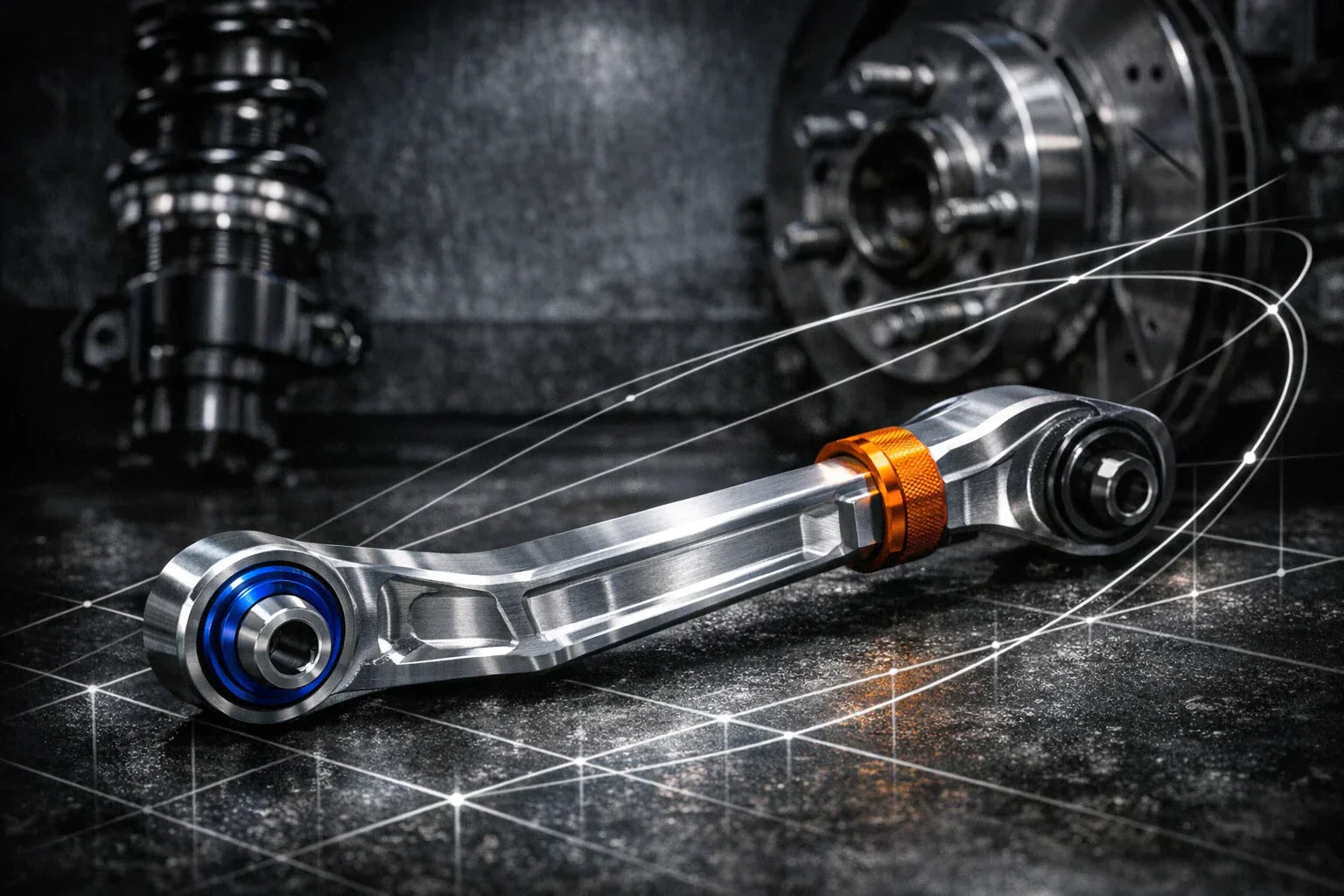

Performance Control Arms & Suspension Linkages: Mastering Geometry and Wheel Travel

This article was written by Coilovers.com Owner and Principal, Lou Tortola.

Here is what most people miss. A coilover kit sets ride height, spring rate and damping. It does not move the pivot points your control arms swing around. Drop the car and those pivots end up in the wrong place. Performance control arms and correction parts are how you move them back. Your new performance suspension is now working against geometry that was drawn for stock height. Left alone, that can lead to suspension geometry coilover failure.

WHY LOWERING BREAKS YOUR GEOMETRY

Factory suspension is designed around a specific ride height window. On many cars, OEM control arms, tie rods and lateral links sit close to level at stock height. Drop the car two or three inches and those arms angle up toward the wheels. Two problems follow right away.

First, your roll center drops. The roll center is the point your chassis rotates around during cornering. Our guide to suspension kinematics explains how it moves. On many strut cars, the roll center falls faster than the center of gravity as you lower. That longer lever between the two means more body roll, even with stiffer coilover springs doing their job.

Second, you get bump steer. When the tie rod and the control arm swing through different arcs, the wheel steers itself over a bump. You feel it as twitchiness on uneven roads. No input from you, just the geometry steering the car on its own.

CORRECTING THE ARC: ROLL CENTERS AND BUMP STEER

The fix is not just buying parts. It is thinking in terms of a correction kit that moves pivot points back to where they belong.

Roll center adjusters use extended ball joints to drop the outer pivot of the lower control arm. That brings the arm angle back toward stock and pulls the roll center back up toward the center of gravity. Body roll drops. Turn-in sharpens. Many roll center kits also include tie rod correction, which brings the steering arc back in line.

Adjustable camber and toe arms let you dial in alignment precisely. Lowering usually adds negative camber and shifts the toe curve. Factory eccentric bolts often run out of range before the alignment is back in spec. Adjustable arms give you the range to set exact camber and toe values at the ride height you chose.

The payoff shows up as consistency. An uncorrected lowered car can see noticeable toe change through its suspension travel. Properly set suspension linkages cut that change down, so the car tracks the same way on smooth and broken pavement.

MATERIAL SCIENCE: WHY 7075-T6 ALUMINUM MATTERS

High-end suspension arms cost more. The reason comes down to metallurgy. Many mid-range arms use 6061-T6 aluminum or stamped steel. Many high-end performance control arms use 7075-T6 aluminum, the alloy aircraft makers rely on.

The difference is real. 7075-T6 is much stronger than 6061-T6 at almost the same density. That ratio makes it a strong choice for track use, where arms take repeated high loads. A lighter arm also trims unsprung weight, because part of each control arm moves with the wheel.

How much does that matter? It depends on the part. The wheel, tire, hub and brakes carry most of the unsprung weight. Only the outer part of an arm counts, so a lighter arm trims a little. Your spring rate and damping stay the same, but the tire has a bit less mass to drag over each bump.

Low-priced unbranded arms from unknown sources are a different story. Poor grain structure and weak welds can fail under repeated load. On a track or even a spirited canyon run, that failure can be sudden. It is not a risk worth taking.

SPHERICAL BEARINGS VS. POLYURETHANE BUSHINGS

Once you have chosen your arm material, the pivot point is the next decision. Factory rubber bushings put comfort first. They soak up road noise and harshness well. But under hard cornering, OEM rubber can deflect noticeably. Your alignment was perfect on the alignment rack. At corner exit it has shifted.

Polyurethane bushings sit in the middle. They are firmer than rubber and deflect less, while still filtering some noise. Whiteline builds polyurethane bushings for control arms, subframes, sway bar end links and differentials across a wide application range.

Spherical bearings are metal-on-metal joints, often with a PTFE (Teflon) liner. They deflect far less than rubber under lateral load. Your alignment stays much closer to where you set it. Steering inputs feel more direct, and feedback improves across the spring rate range your coilovers run.

The daily driver concern is real but often overstated. Quality lined spherical bearings add some harshness, not a lot. You hear more road texture through the cabin, but it is not the bone-shaking ride people expect. Low-grade unlined bearings are the ones that start to rattle early.

Maintenance matters more with spherical bearings. Grit acts like sandpaper inside the joint. If you drive on salted roads, look for arms with a boot or seal over each bearing. That one feature goes a long way toward bearing life.

WHEN TO UPGRADE: SIGNS YOUR GEOMETRY NEEDS ATTENTION

Some signs are subtle. Others are obvious. Uneven tire wear is the most common one. Watch the inside tread against the outside. If the inside edge is disappearing faster, your camber or toe is off. You may not have enough range to fix it with factory hardware.

Nervous steering over bumps points to bump steer. If the car tracks into road grooves or changes direction on its own over rough pavement, your tie rod geometry needs work. Tie rod correction or a bump steer kit addresses this directly. See our steering system upgrades guide.

Loss of confidence near the grip limit often comes from bushing deflection. When the car surprises you at the edge, the suspension compliance is often inconsistent. Spherical bearings cut that variable way down and give you a more predictable chassis to work with.

CHOOSING PERFORMANCE CONTROL ARMS FOR YOUR CAR

The smart approach is a matched set of parts rather than one arm at a time. Suspension geometry is an interconnected system. Adjusting camber shifts toe. Correcting roll center changes the arm angle and can affect caster. Buying arms one at a time often leads to chasing alignment specs in circles.

Start with the drop you actually plan to run. Set ride height on coilovers first and lock each locking collar. Then choose arms with enough adjustment range to bring that height back into spec. Correction parts are chosen for a height, so the height comes first.

For track use, 7075-T6 arms with spherical bearings are the usual pick. For aggressive street and autocross, 6061-T6 arms with quality polyurethane bushings are a solid middle ground. They add precision without turning your daily driver into a race car.

BRANDS WORTH KNOWING

Whiteline is the chassis-component brand in our lineup. Its range covers sway bars, polyurethane bushings, alignment correction and chassis bracing. The alignment side includes camber bolts, camber arms, toe arms and caster adjustment, plus the MAXG coilover line.

On the coilover side, BC Racing kits include camber-adjustable upper mounts on most applications. Swift Springs SPEC-R springs are an upgrade option on most BC Racing fitments. KW, Fortune Auto, Feal and TEIN each build coilovers for their target platforms. Ask us which arms pair well with the kit on your car.

Third-party arm specialists like Hardrace and SPC fill other gaps. Whatever you buy, check that the pivot geometry suits your drop before you order.
