Chassis Bracing & Structural Reinforcement: Stiffening Your Car's Foundation

This article was written by Coilovers.com Owner and Principal, Lou Tortola.

The problem is often chassis flex, which is what chassis bracing is for. Think of your suspension as a diving board. Anchored to solid concrete, the board does exactly what it was designed to do. Bolted to a deck that flexes, some of that precision goes into moving the deck. Your coilover is the diving board. The chassis is the mount. If the mounting points shift under load, your coilover kit spends part of its effort on flex instead of controlling the tires.

THE PHYSICS OF FLEX

Every chassis is a spring of its own. Under hard cornering, braking and bumps, the body twists and bends a little. On a stiff modern chassis that movement is small. On an older or open-top car, or one with a lot of grip, you can feel it.

A flexing chassis shifts the mounting geometry your coilover relies on. If the strut towers move under load, the alignment you set in the shop is not quite the alignment the car runs at speed. Chassis bracing closes that gap. It lets the coilover kit work with the geometry and valving it was set up for.

Be clear on what bracing does not do. Body roll is set mainly by spring rate, anti-roll bars and roll center height. A brace will not flatten a car that leans on soft springs. What it does is make the car respond sooner and more consistently. The suspension sees the same inputs every time, so the car feels more predictable. Our chassis dynamics guide covers how that shows up at the limit.

STRUT TOWER BRACES

The symptom here is steering numbness and delayed turn-in.

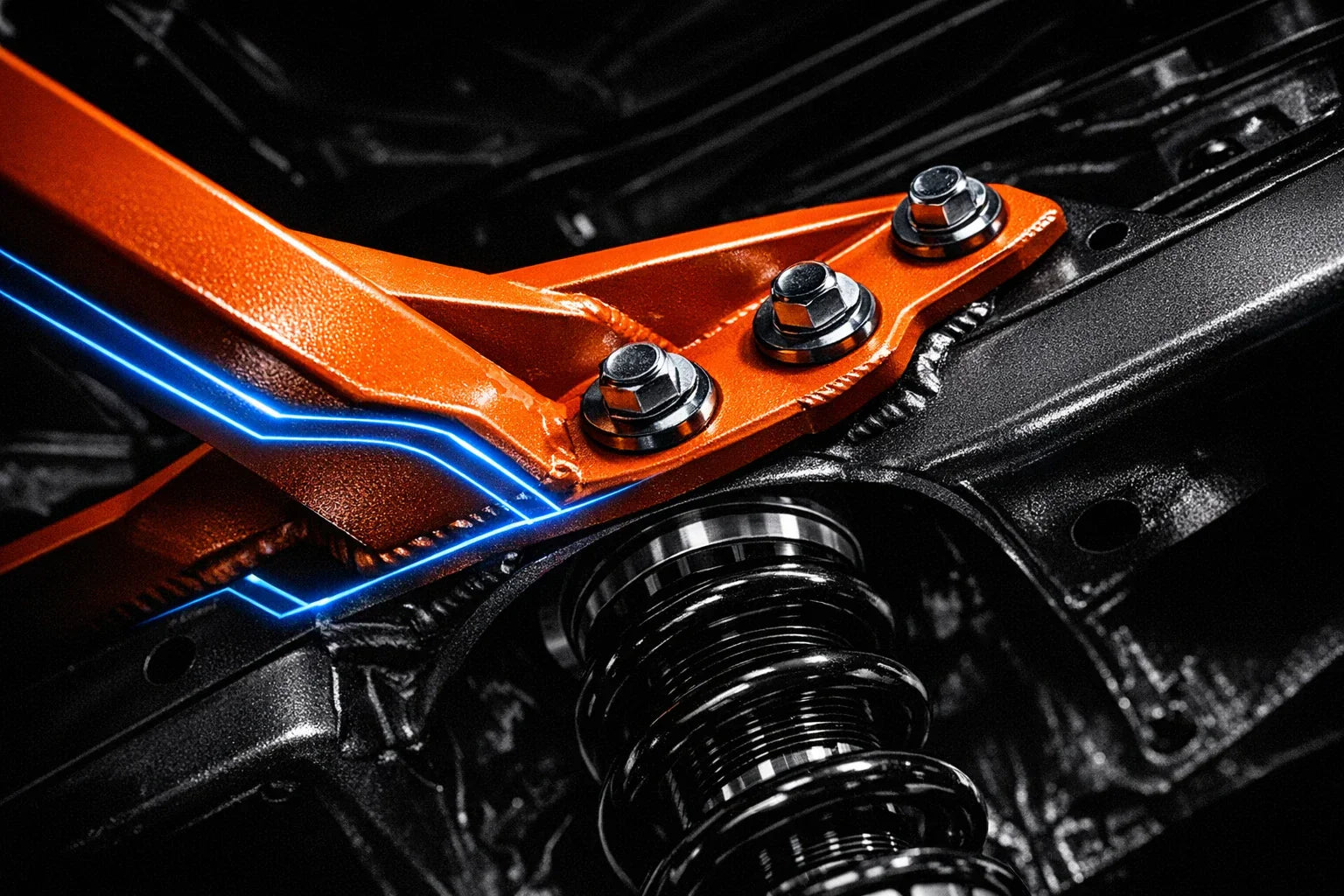

Strut tower braces connect the left and right strut towers across the engine bay at the front or across the trunk at the rear. When you turn the wheel, cornering loads try to push the towers inward or pull them apart. A strut bar holds them at a fixed distance. More of your steering input goes to the tires and less goes into flexing sheet metal. For most street-driven cars this is the first bracing upgrade worth making. We carry Whiteline strut tower braces alongside our coilover kits.

A good strut bar is a solid one-piece unit with proper mounting plates. Multi-piece bars with jointed links can bring their own flex. If you are going to fit a bar at all, the one-piece design is worth the extra cost.

SUBFRAME CONNECTORS

The symptom here is wheel hop, rear-end movement under hard acceleration and inconsistent power delivery.

Some older platforms, muscle cars in particular, tie the front and rear structure together mainly through the floor pan. Subframe connectors bridge that gap and join the front and rear rails into one stiffer unit. On high-horsepower builds they are close to essential. The twisting load from a big torque hit has to go somewhere, and a flexible floor will take it.

Connectors also keep the geometry at each end of the car more consistent under acceleration and braking. Consistent geometry means the damper sees consistent inputs. That helps your spring rate and damping settings do their job.

FENDER AND LOWER TIE BRACES

The symptom here is dashboard shake over bumps and a front end that wanders.

Fender braces reinforce the junction between the A-pillar and the front strut tower. Lower tie braces join the lower control arm mounting points. Together they cut twisting in the front third of a unibody car under braking. The front of the car moves around less under hard stops, which makes trail-braking into a corner more predictable.

STREET VS. TRACK: THE NVH DECISION MATRIX

NVH stands for noise, vibration and harshness. Every brace trades a little comfort for a little response. How much you trade should match how you use the car.

Street driver: Front and rear strut tower braces. The comfort cost is small. Your coilovers get tighter mounting points and your passengers rarely notice a change.

Street and occasional track: Add lower subframe braces and fender braces. You will feel a little more road texture, but most drivers find it easy to live with. This is where most enthusiasts who track a few times a year end up.

Dedicated track car: Weld-in subframe connectors, a multi-point roll cage and solid suspension bushings throughout. The chassis is as stiff as you can make it. Road noise and vibration come into the cabin. This is a trade you make on purpose, and it does not suit daily driving.

Material Choices: Steel, Aluminum, Carbon Fiber

Steel gives you the most stiffness per dollar. Like any material, it will bend if you load it past its limit, as in a hard impact. It suits underbody work and subframe connectors, where the weight sits low. Used heavily in the engine bay, it adds mass high and at the front of the car.

Aluminum is lighter and resists corrosion. Good tubular aluminum gives plenty of stiffness for strut tower bars. It is less stiff than steel for the same size, so the tube has to be larger to match. That can cause clearance trouble in a tight engine bay.

Carbon fiber has the highest stiffness for its weight. It is the lightest option, though every brace still adds some weight. It costs the most, and it can fail suddenly, with damage hidden inside the laminate. Inspect carbon parts after any knock. It makes sense on competition builds where every pound counts.

Platform-Specific Chassis Bracing Priorities

Different platforms flex in different places. A generic bracing plan can spend money on parts that fix the wrong weak point.

Older muscle car platforms tend to flex through the floor and rear rails. Subframe connectors usually come first on these cars, before any other bracing. Without them, the body twists and soaks up load that your coilovers are meant to control.

Front-wheel-drive track builds load the front subframe hard. Steering, drive and most of the braking all happen at the front tires. A lower front brace keeps the control arm mounting points from moving under load. That cuts the compliance that can feed torque steer and makes the front end more predictable on corner entry.

INSTALLING COILOVERS FIRST

Start with the coilover kit. Our guide on how to install coilovers walks through the job. Once the suspension is doing its job, the remaining weak points stand out. A BC Racing BR Series kit gives you 30-click simultaneous compression and rebound and full-length ride height adjustment. Swift Springs SPEC-R springs are an upgrade option on most BC Racing fitments. KW V3 brings independently adjustable compression and rebound. Fortune Auto hand-builds its kits in Virginia with custom valving for your application.

Öhlins, TEIN, Bilstein and Feal performance suspension builds follow the same order. Fit the coilovers, set them up, drive the car, then decide which brace you need.

One myth to clear up. Chassis flex does not move your locking collar. The collar threads sit on the damper body, not the chassis. If your ride height drifts, check that each locking collar was torqued properly. Then look at spring sag, which shortens the spring and drops the car, and at worn mounts or bushings.
